Industrial CNC Machine Tools • Factory Direct Supply

CNC Milling Machines, CNC Lathes & Vertical Machining Centers

Direct manufacturer in Tengzhou, Shandong. We supply heavy-duty vertical machining centers, slant bed turning centers, flat bed lathes, and 5-axis milling centers with FANUC, Siemens, or GSK CNC controls.

Cast Iron Base HT300 / Meehanite
Linear Guideways Taiwan HIWIN / PMI
Laser Calibration Renishaw ±0.005mm
Certification CE & ISO 9001:2015
Browse Machine Models Request Factory Price Quote
• FOB Seaports: Qingdao / Shanghai • Lead Time: 15–25 Days • Warranty: 12 Months • Worldwide Shipping: 150+ Countries

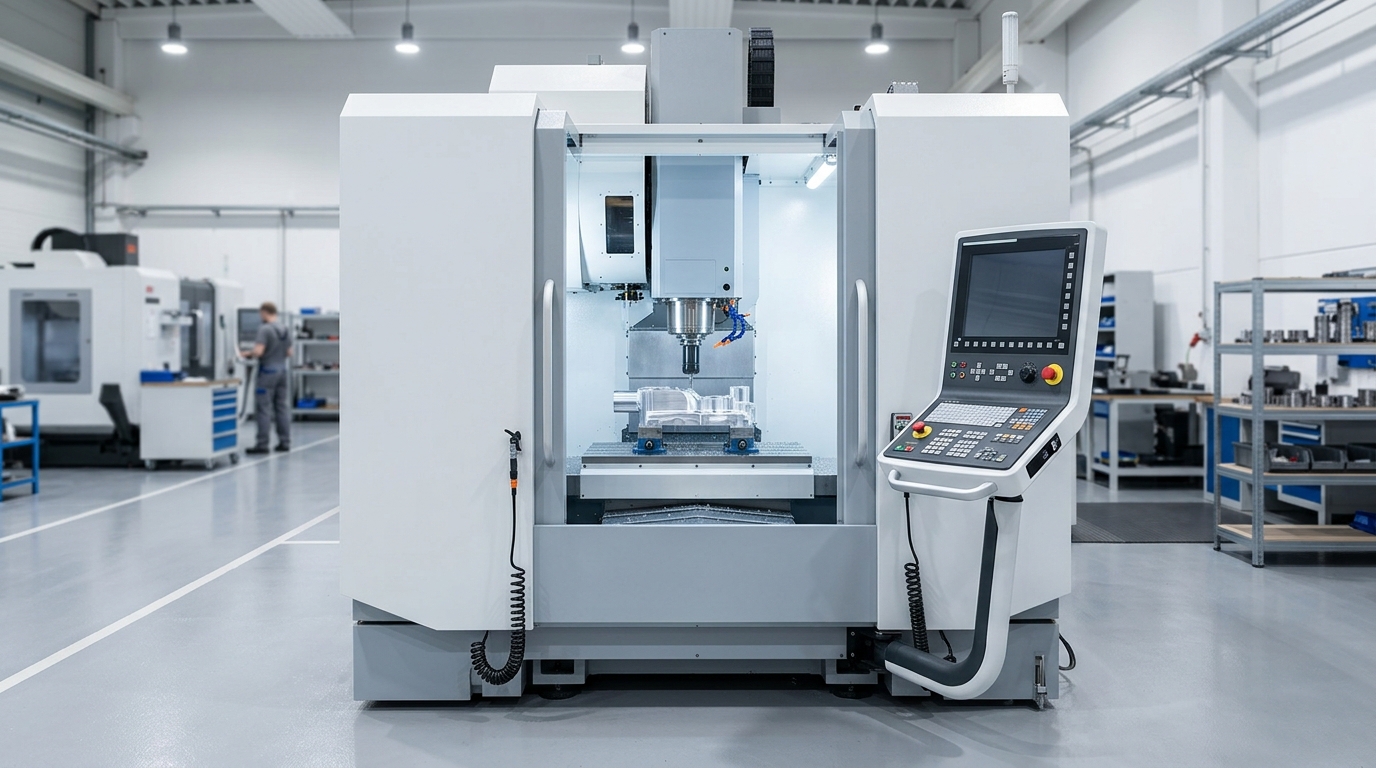

VMC850 Vertical Machining Center on assembly workshop floor
Model: VMC850

VMC 850 Vertical Machining Center

X/Y/Z Travel: 850 / 500 / 550 mm • Table: 1000 × 500 mm

• Spindle: BT40 / 10,000 RPM
• ATC: 24-Tool Arm Type
• Controller: FANUC / Siemens / GSK
• Rapid Feed: 36 / 36 / 30 m/min
Factory Direct Price Full Technical Specs →

Machine Tool Product Categories

Standard and customized CNC machine tools built for metal cutting, die & mold making, and serial production.

View All 7 Categories →

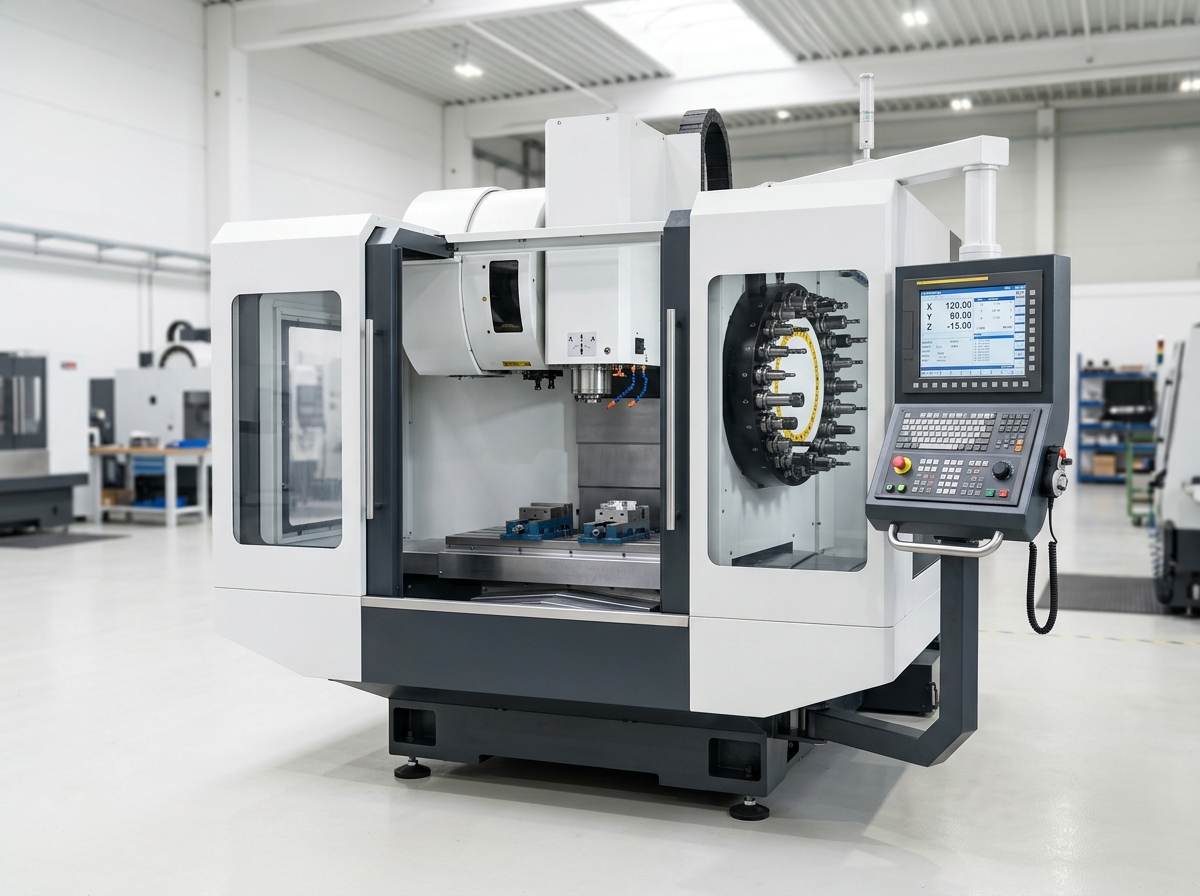

Vertical Machining Center - CNC Machine Supplier China

Vertical Machining Center

3-axis and 4-axis vertical CNC milling centers with BT40/BT50 spindles, 24T arm type ATC, and linear roller guideways.

Vertical Machining Center View Machines →

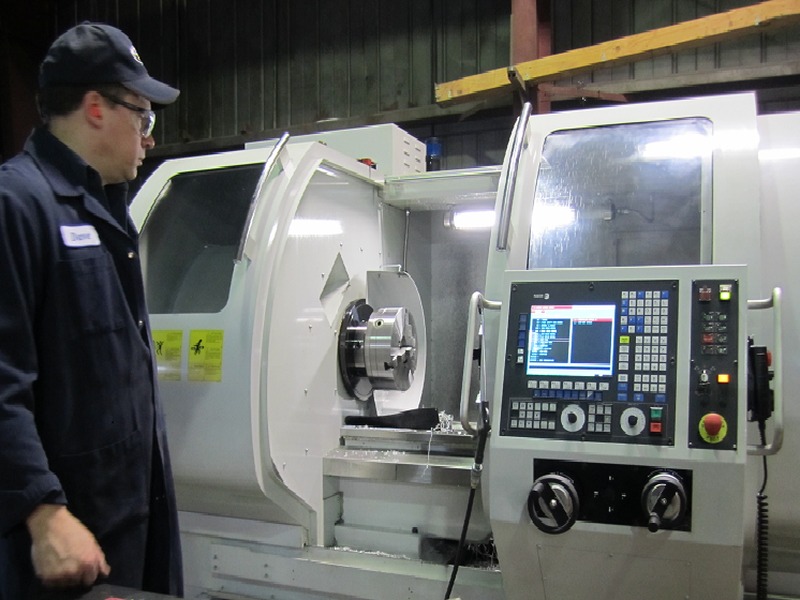

Slant Bed CNC Lathe - CNC Machine Supplier China

Slant Bed CNC Lathe

Heavy-duty 30° / 45° slant bed CNC turning centers with hydraulic chuck, 8/12-station hydraulic turret, and programmable tailstock.

Slant Bed CNC Lathe View Machines →
Flat Bed CNC Lathe - CNC Machine Supplier China

Flat Bed CNC Lathe

Economical horizontal CNC lathes for shaft and disc turning, pipe threading, and maintenance workshops.

Flat Bed CNC Lathe View Machines →

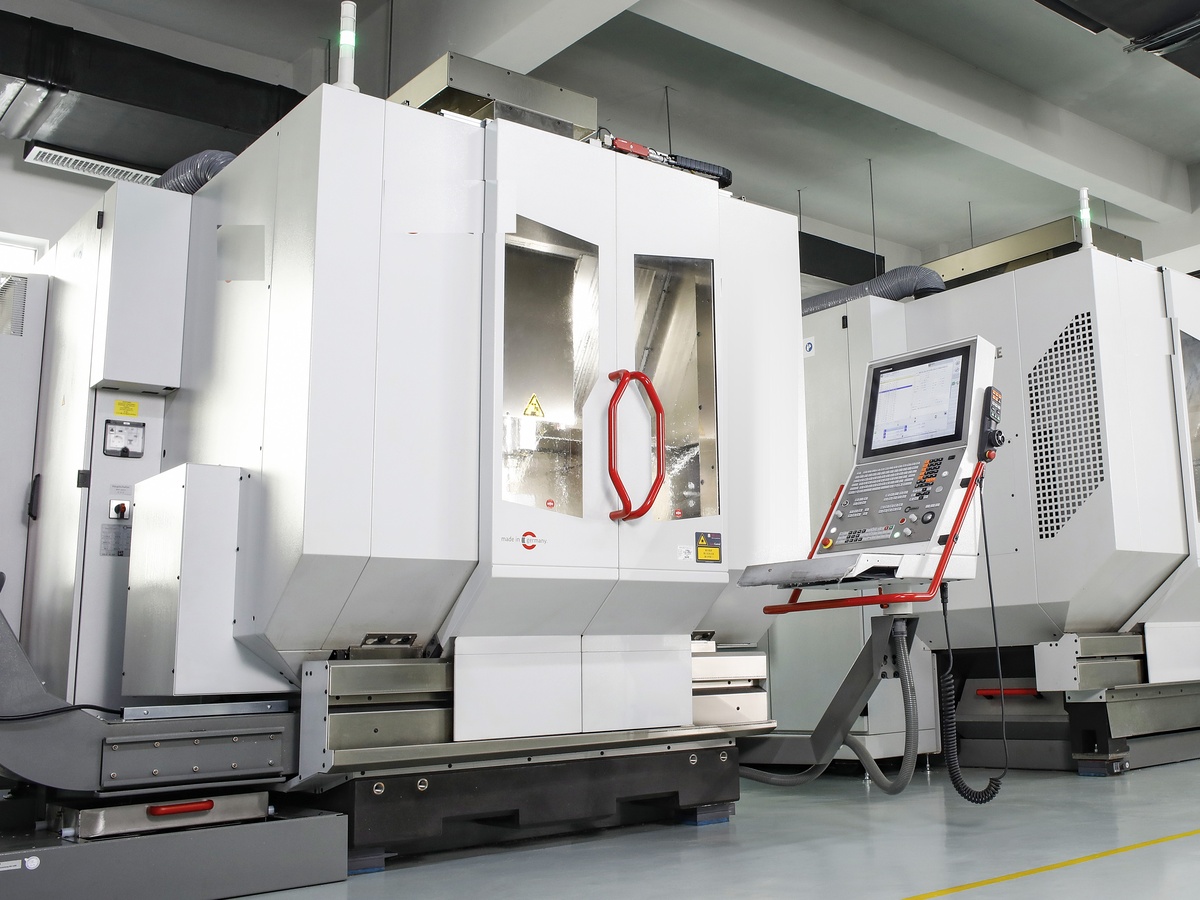

5-Axis CNC Machining Center - CNC Machine Supplier China

5-Axis CNC Machining Center

Simultaneous 5-axis machining centers with integrated tilting-rotary table (B/C axis) for complex impellers, blades, and molds.

5-Axis CNC Machining Center View Machines →
Gantry Machining Center - CNC Machine Supplier China

Gantry Machining Center

Double-column bridge type CNC milling machines for large stamping dies, injection molds, and structural machine bases.

Gantry Machining Center View Machines →

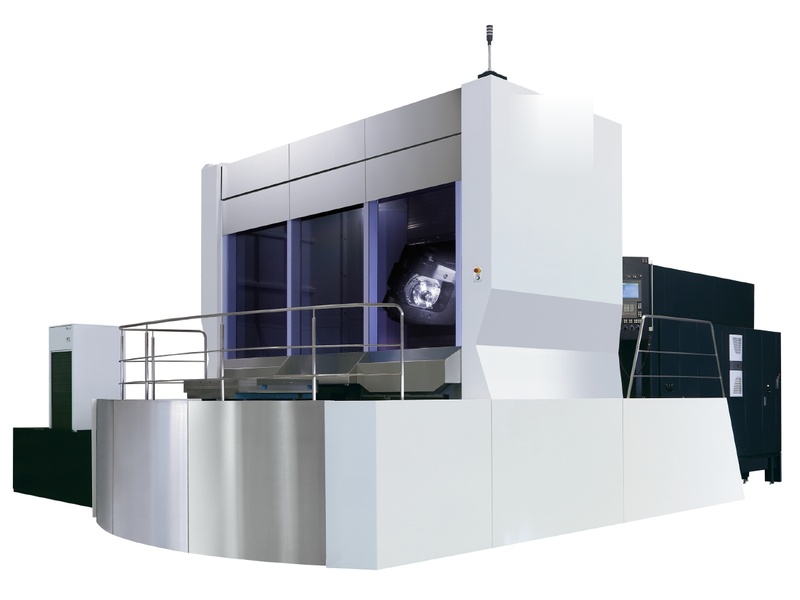

Horizontal Machining Center - CNC Machine Supplier China

Horizontal Machining Center

Twin rotary pallet CNC horizontal machining centers (HMC) for 4-face batch box-type parts and valve bodies.

Horizontal Machining Center View Machines →

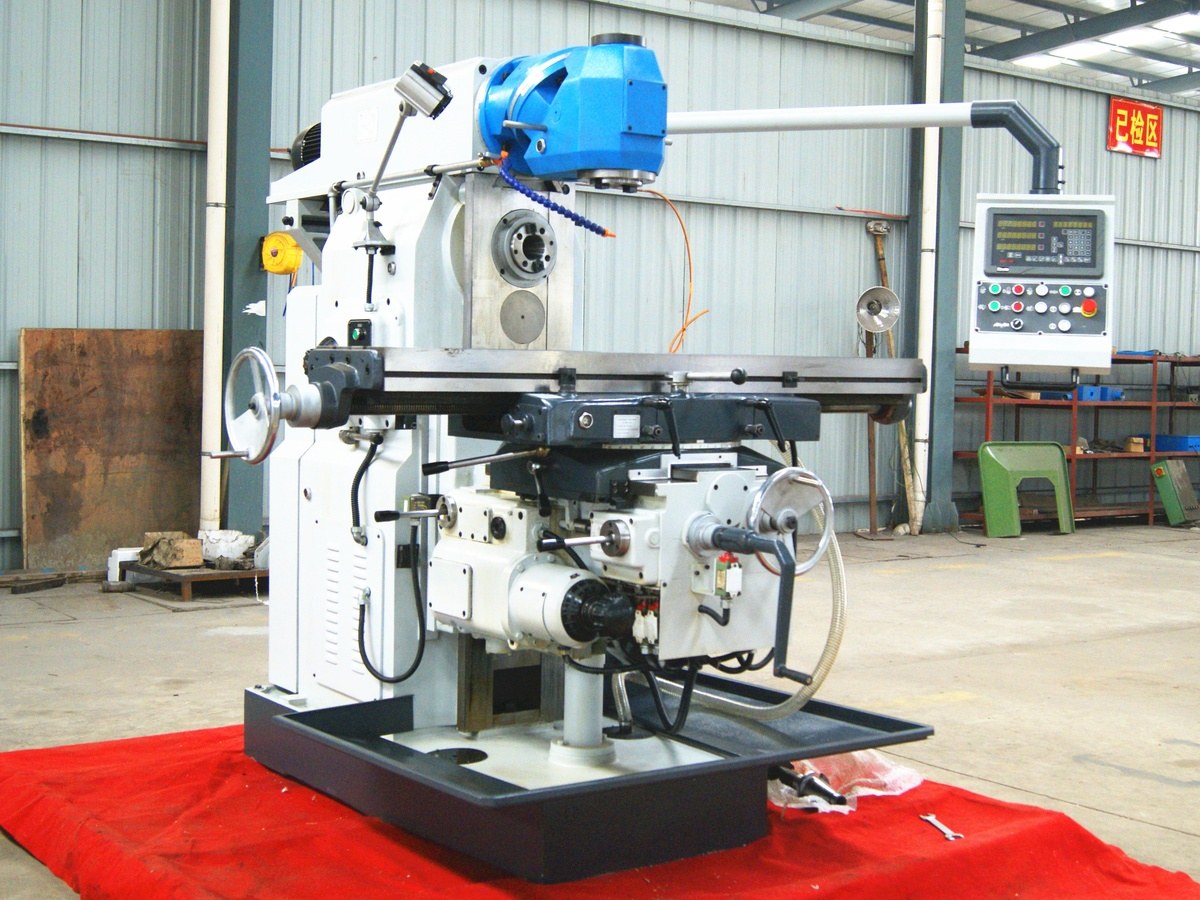

Drilling and Milling Machine - CNC Machine Supplier China

Drilling and Milling Machine

Gear-head bench and floor drilling-milling machines for toolrooms, prototyping, and mechanical repair workshops.

Drilling Machine View Machines →

Featured CNC Machine Models

Factory-assembled models with complete component lists, test reports, and controller options.

View Complete Catalog →
VMC 850 Vertical Machining Center - Vertical Machining Center
VMC850 Featured
Vertical Machining Center

VMC 850 Vertical Machining Center

The VMC 850 is the standard production workhorse for general metal cutting, precision mold cavities, and automotive components. Built on a heavy HT300 Meehanite cast iron base with 6-month natural aging, it features Taiwan HIWIN 35mm roller guideways, C3 grade pretensioned ballscrews, and 24-tool high-speed arm type automatic tool changer.

Worktable Size 1000 × 500 mm
T-Slots (No. × Width × Pitch) 5 × 18 × 100 mm
Max Table Load 600 kg
View Specs Get Quote

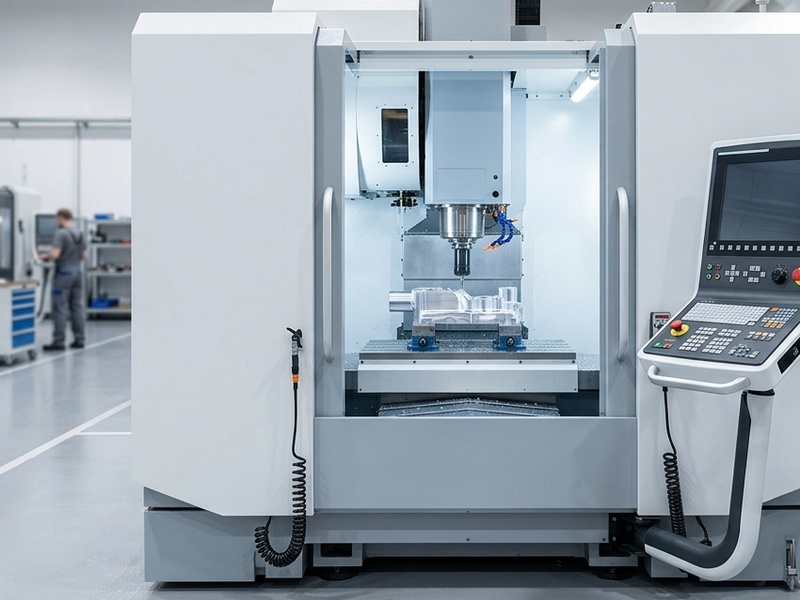

VMC 650 Compact Vertical Machining Center - Vertical Machining Center
VMC650 Featured
Vertical Machining Center

VMC 650 Compact Vertical Machining Center

Designed for small-to-medium parts requiring rapid cycle times, high spindle speed, and tight tolerances. The VMC 650 takes up minimal floor space while delivering full rigid milling capability for electronics, optical components, and precision instruments.

Worktable Size 800 × 400 mm
Max Table Load 400 kg
X / Y / Z Travel 650 / 400 / 480 mm
View Specs Get Quote
TC500 Slant Bed CNC Lathe - Slant Bed CNC Lathe
TC500 Featured
Slant Bed CNC Lathe

TC500 Slant Bed CNC Lathe

The TC500 is a high-rigidity CNC turning center built with a one-piece 45° slant bed casting. Designed for heavy-duty metal removal, continuous production turning, and seamless chip flow onto an automatic chain conveyor. Easily integrates with automatic bar feeders and parts catchers.

Max Swing Over Bed 500 mm
Max Turning Diameter 380 mm
Max Turning Length 500 mm
View Specs Get Quote
GMC-5X 5-Axis CNC Machining Center - 5-Axis CNC Machining Center
GMC-5X Featured
5-Axis CNC Machining Center

GMC-5X 5-Axis CNC Machining Center

Engineered for single-setup complete machining of complex 3D surfaces, aerospace impellers, turbine blades, orthopedic bone joints, and precision tire molds. Equipped with an integrated rigid B/C dual-axis tilting-rotary cradle table and direct torque motors.

Rotary Table Diameter (C-Axis) Ø500 mm (360° continuous)
Tilting Axis (B-Axis) -120° to +30°
X / Y / Z Travel 650 / 600 / 500 mm
View Specs Get Quote

Manufacturing Standards & Quality Inspection

Every machine is built according to strict industrial machine tool standards to ensure dimensional stability, spindle concentricity, and long-term cutting accuracy.

STAGE 01

HT300 Resin Sand Castings

Machine beds, columns, and saddles are cast from HT300 / Meehanite iron with dense honeycomb ribbing. All castings undergo 6 months of outdoor natural aging followed by thermal stress-relief annealing to eliminate internal stresses and prevent bed deformation.

STAGE 02

Precision Brand Components

We assemble using genuine Taiwan HIWIN / PMI precision linear roller guides, Japan NSK angular contact spindle bearings, Taiwan Royal / POSA spindles, and Schneider electrical controls. All critical components have traceable serial numbers.

STAGE 03

Renishaw Laser & Ballbar Testing

100% of machines undergo dynamic pitch error compensation using Renishaw laser interferometers (positioning ±0.005mm, repeatability ±0.003mm) and Renishaw wireless ballbar circularity tests before packaging. Test reports are delivered with the machine.

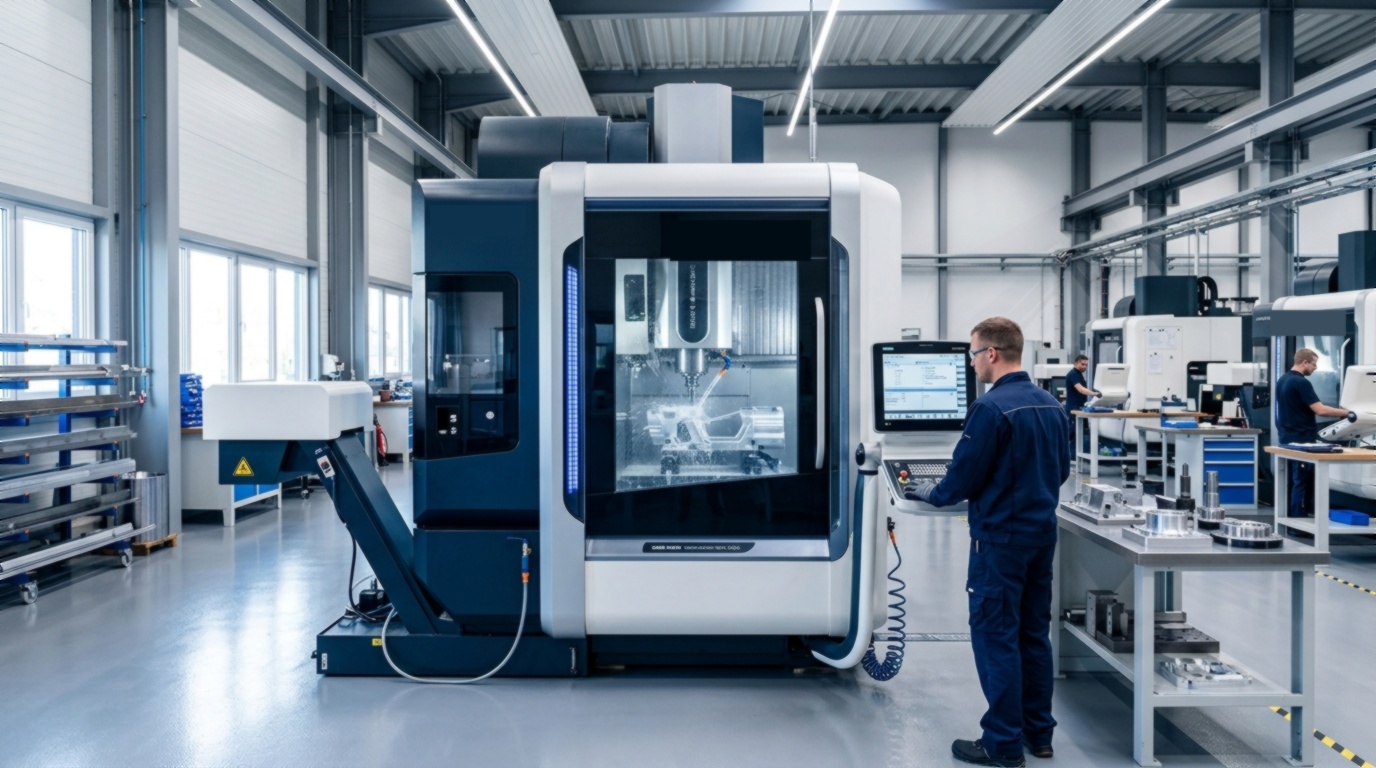

Heavy CNC machining center assembly workshop in Tengzhou

Production Facility in Tengzhou, Shandong

Our 35,000 ㎡ assembly facility produces over 1,000 sets of CNC machining centers, turning centers, and milling machines annually. We welcome client visits and third-party pre-shipment inspection agencies (SGS, TÜV, BV).

• Plant Area: 35,000 m² assembly workshops
• Testing Lab: Renishaw laser calibration & 72h running line
• Location: Industrial Equipment Zone, Tengzhou, Shandong
Learn More About Our Factory →

Machinery Sourcing Guides & Technical Articles

Practical buying advice, pricing factors, manufacturer profiles, and shopfloor machine comparisons.

View All Articles →

Frequently Asked Questions (Sourcing & Logistics)

Practical answers regarding power voltages, precision calibration, payment terms, and warranty.

Can you customize the machine voltage and electrical frequency for our factory?

Yes. All CNC machines are wired according to your local industrial power supply: 220V, 380V, 415V, 440V, or 480V (3-Phase, 50Hz or 60Hz). When required, we install an integrated multi-tap servo transformer inside the machine cabinet so it plugs directly into your plant power.

How is machine accuracy verified and documented prior to container loading?

Every unit undergoes a full quality inspection protocol: British Renishaw laser interferometer pitch error compensation (X/Y/Z linear positioning and repeatability), Renishaw QC20 wireless ballbar circularity testing, spindle taper dynamic runout check (< 0.003mm at nose), and continuous 72-hour dry running. The signed test data sheets and test-cut video are provided before dispatch.

What CNC control systems can be installed on your machines?

We offer factory integration with FANUC 0i-MF Plus / 0i-TF Plus, Siemens Sinumerik 828D / ONE, Mitsubishi M80B, and GSK (25i / 980TDi) or Syntec controllers. English operation interfaces, English manuals, and full electrical diagrams are supplied with every order.

What are the standard delivery lead times and sea freight terms?

Standard models such as the VMC850, VMC650, and TC500 slant bed lathes are typically dispatched within 15 to 25 days from deposit. Specialized 5-axis centers or custom gantry mills require 40 to 60 days. We supply under FOB Qingdao / Shanghai or CIF to any major world seaport, handling container stuffing, anti-rust vacuum packing, and sea freight booking.

What warranty coverage and spare parts support are provided?

We provide a 12-month complete warranty covering mechanical parts, spindle, and CNC control electronics. During the warranty period, genuine replacement parts are dispatched via DHL/FedEx air courier within 24 to 48 hours. Our technical team provides direct video support for installation, tooling setup, and troubleshooting.

Request Machine Quote (RFQ)

Fill out the form below with your workpiece specifications. Our engineering team will respond within 4 business hours with pricing and technical recommendations.
